TITAN tri axle dropside trailer adopts advanced design concept, which makes the tri axle dropside trailer carry more load and more goods, and bring you more profits.
The side wall height of the TITAN tri axle dropside trailer can be customized, depending on the actual needs of customers. At the same time, TITAN uses high-strength carbon steel to make the main beam, which makes the tri axle dropside trailer have a higher bearing capacity and prolongs the service life.
TITAN also uses world-renowned brands as accessories, such as jost landing gear, bpw, etc.
Tri Axle Dropside Trailers for Sale Price in Zambia
Tri Axle Dropside Trailers for Sale Price in Zambia
Tare Weight: About 7.6T
Dimension(mm):12500x2490x3260mm
Trailer Sides: 1000mm, or box type sides
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

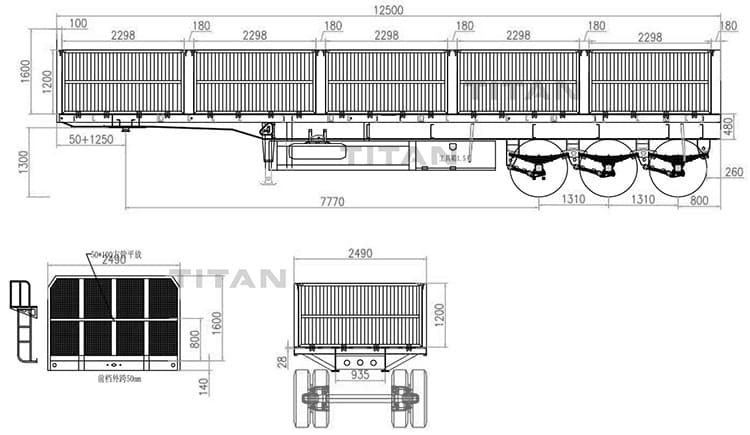

Drawing of Tri Axle Dropside Trailers for Sale

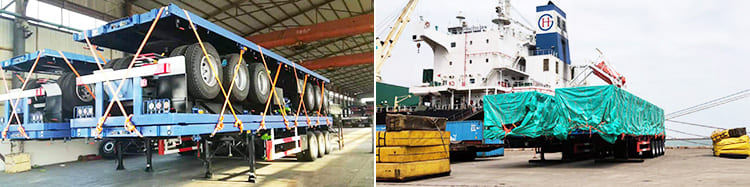

TITAN has professional packaging solutions. In order to prevent the dropside trailer from rusting in water during shipping, TITAN will spray a layer of waterproof wax before packing. At the same time, a rain cloth will also be covered for the dropside trailer to prevent bad weather.
At the same time, the rain cloth can also effectively prevent scratches and ensure that the drop side trailer will be as complete as new when it is delivered to the customer.

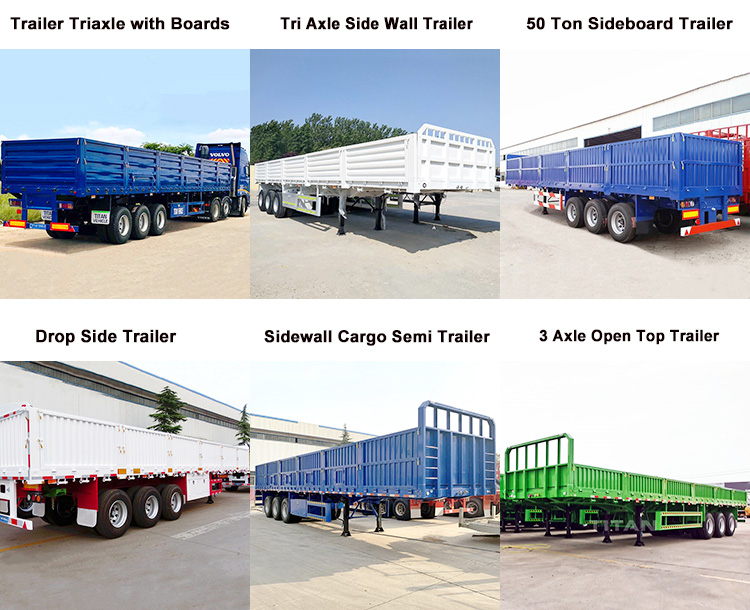

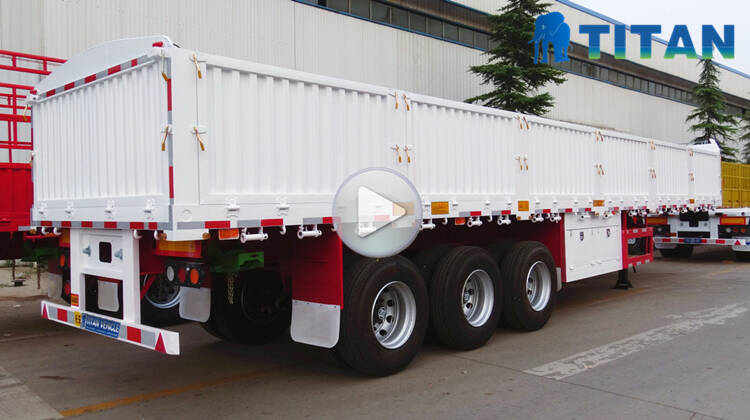

Through this video, you can learn about different types of sidewall semi trailers, as well as the process, testing, packaging and customer feedback, etc.
