TTIAN 4 Axles removable side wall semi trailer's side wall height can be customed by your needs.
TITAN 4 axle removable side wall semi trailers are very popular among transportation logistics companies. They can be used to transport some building materials and bulk cargo goods, and the loading and offloading is very convenient.
There are rope tensioners under the side walls, which can be used to secure cargo.
4 Axles Removable Side Wall Semi Trailer for Sale
4 Axles Removable Side Wall Semi Trailer for Sale
4 Axles Removable Side Wall Semi Trailer for Sale
Tare Weight: About 7.6T
Dimension(mm): 13000x2500x3150mm
Trailer Sides: 1000mm, or box type sides
Loading capacity(ton): ≤60T
Axles: 4 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand
Tire: 16 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
1. TITAN side wall semi trailer is made of high-strength alloy steel, which has a higher bearing capacity and a service life of more than 10 years

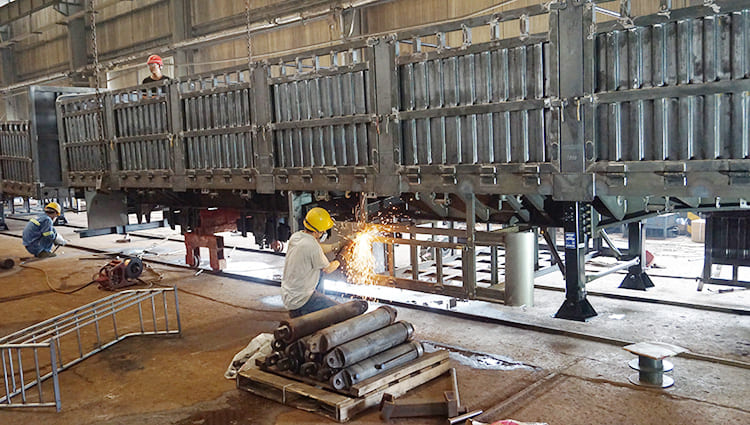

2. The beam is welded by advanced automatic submerged arc welding process, which make the beam more durable.
2. TITAN side wall semi trailer uses polyurethane paint, high adhesion, beautiful color, the paint won't come off after five years of use.
3. The TTIAN removable side wall trailer adopts better parts, such as jost landing gear, wabco system etc., which have a longer service life.
Through this video, you can learn about different types of sidewall semi trailers, as well as the process, testing, packaging and customer feedback, etc.
