TITAN 40 ton side tipper trailer is equipped with Well-known brand axles, suspension systems, to ensure the good performance of the vehicle.
40 Ton side tipper trailer can be used in many other fields such as construction, agriculture, etc. They have different shapes and types, which are divided into Side Dump Trailer and rear tipping trailer. you can use side dump trailer to help save space. The load capacity of the side dump trailer may be greater than that of the rear tractor tipper trailer.
Side Dump Trailer for sale suitable for large workplaces, 40 ton side tipper trailer maximum carrying capacity can reach 80-100tons. 40 Ton side tipper trailer is another type of dump trailer, and it allows goods to be unloaded from the side. The main types of cargo transported by this semi-trailer are building materials, such as stone, sand, etc.
Tri Axle 40 Ton Side Tipper Trailer for Sale In Congo - Cheap Trailers
40 Ton Dropside Side Tipper Trailer with Best Price

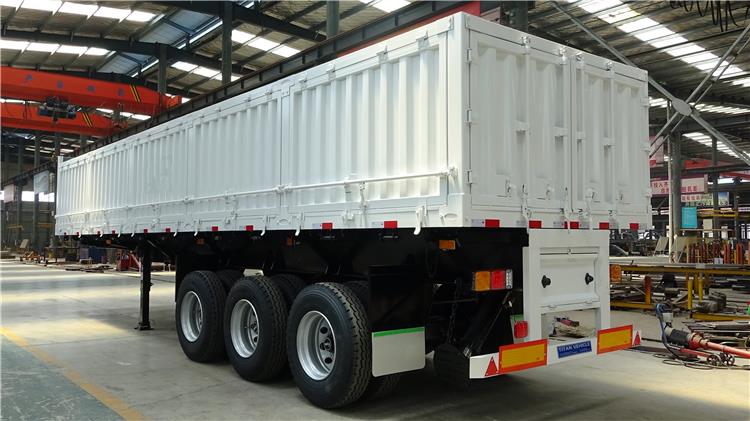

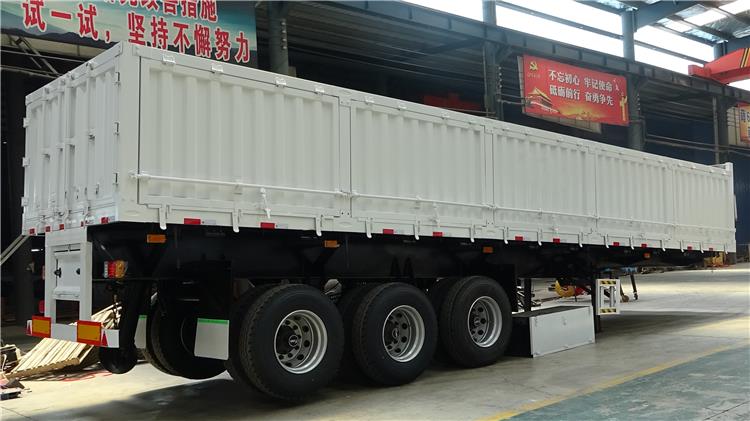

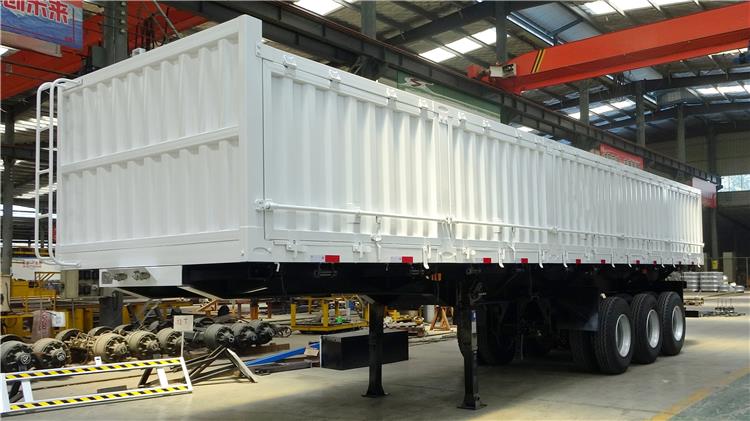

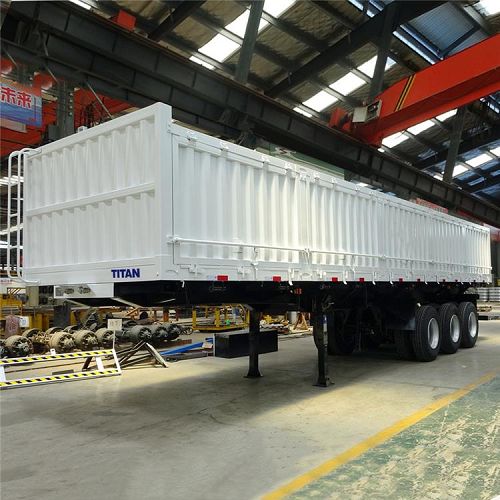

Details of Tri Axle Side Tipper Trailer

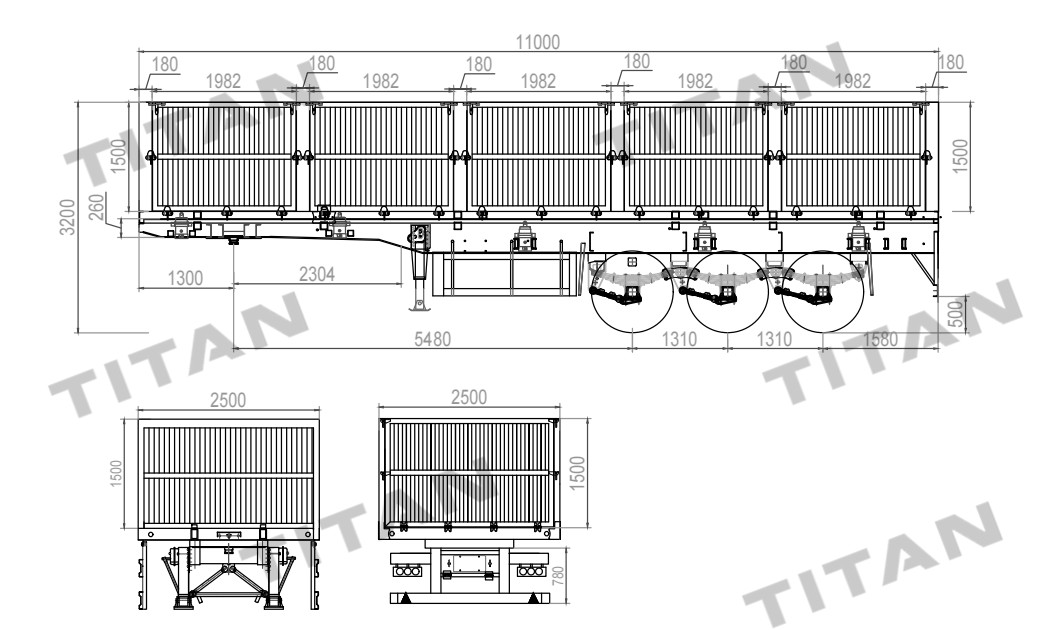

Drawing of Side Tipper Trailer for Sale
Dimension: 11000mmx2500mmx3200mm
Lifting System: Lifting cylinder 5x130 bore, a shift cylinder
Axle: 3 axle 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 16mm, Material: T700 steel.
ABS: Optional
Valve: WABCO valve
Light: LED light (especially intended for overseas markets)
Voltage: 24V
Accessories: One standard tool box, one rocker handle, one Shaft wrench
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of topcoats.

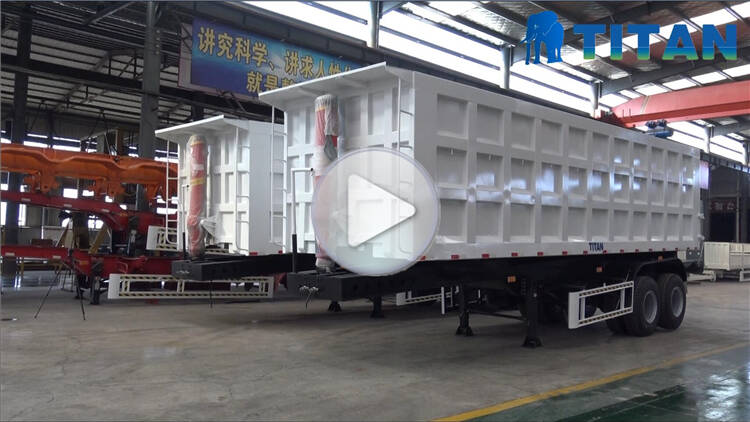

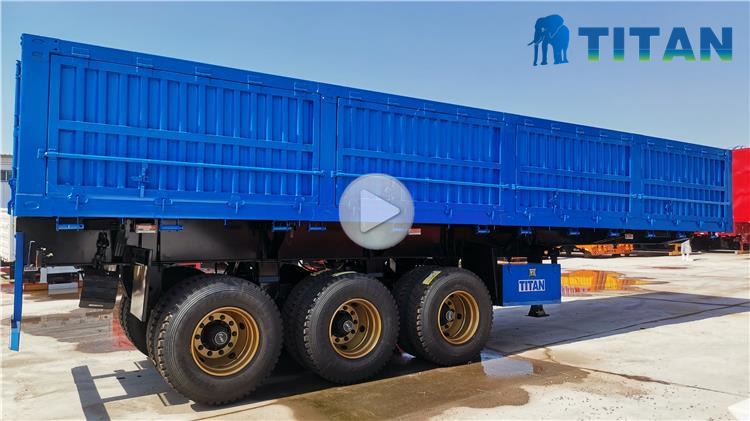

Side Tipper Trailer Video
Through these videos, you can learn about different types of tipper semi trailer, as well as the process, testing, packaging and customer feedback, etc.
