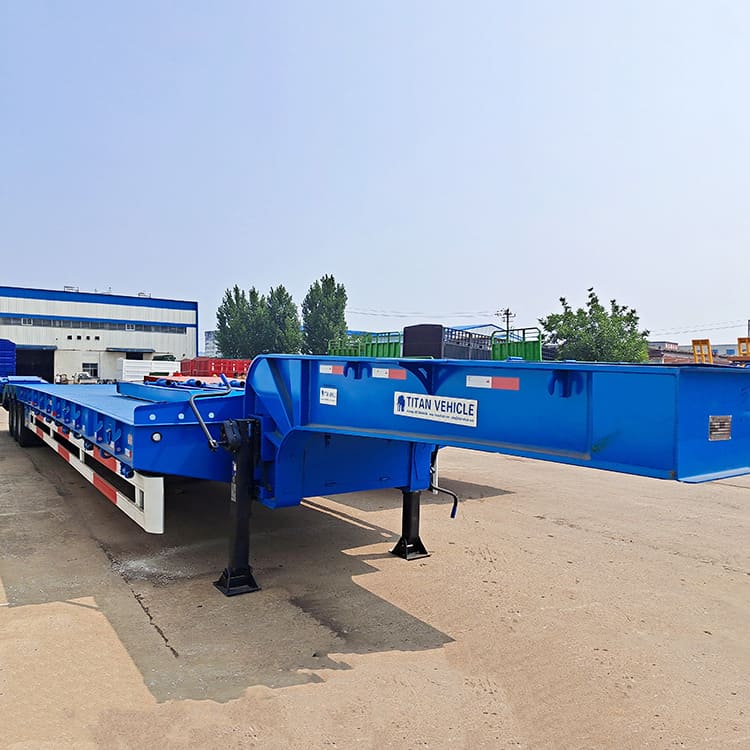

TITAN 80t tri axle low loader trailer for sale is mainly designed for transporting heavy vehicles (such as tractors, construction machinery, special vehicles, etc.),
TITAN 80t tri axle low loader trailer is mainly composed of ladders, main frame, axles, tires, suspension, light circuit system, “ABS” braking system, tool box, support device and lower side protection device, safety accessories and signs, etc. , suitable for the transportation of large construction machinery or large machinery.
The side beam of TITAN low loader trailer adopts "H" shape design and is welded with HG 60 steel, Its bearing capacity is twice that of other steel, and it will not deform after ten years of use.
80T Tri Axle Low Loader Trailer for Sale Price
80T Tri Axle Low Loader Trailer for Sale Price
Overall dimension: 13000mm * 3000mm *3751mm
Loading capacity(T): 80T
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 12.00R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: hydraulic type
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)

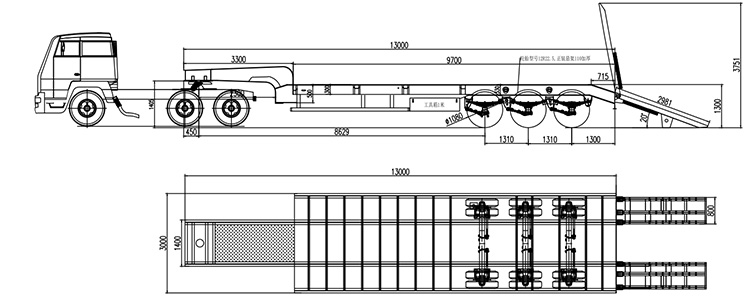

Drawing of 80t tri axle low loader trailer

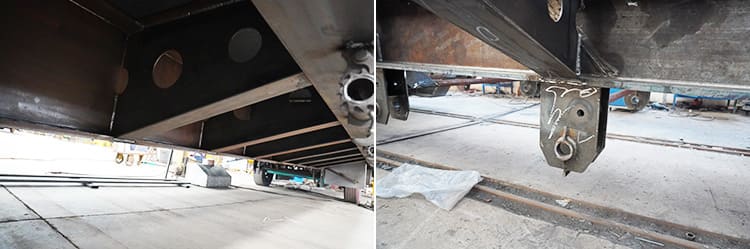

The through beam of TITAN low loader trailer uses HG60 high strength steel. The thickness is 6mm, and the inclined support is HG60 with a thickness of 6mm. Effectively connect the main beam and side beam together. Bearing capacity anti - turbulence capacity greatly increased.
Through this videos, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
