The 150 ton heavy haul lowboy trailer is mainly designed for transporting150 ton cargo, which is used in industry, energy, shipbuilding or other areas.
The main beam of the 150 ton heavy haul lowboy trailer is made of Q460C high-strength manganese steel. This kind of steel has good toughness, its carrying capacity is 5 times that of Q345 steel semi-trailer, and its service life is more than 10 years.
The 150 ton heavy haul lowboy trailer main beam is 20mm thick at the top and 250mm wide at the bottom and 20mm thick at the bottom and 250mm wide. The middle height is 550mm and the thickness is 14mm. The gooseneck of the 150 ton heavy haul lowboy trailer adopts a push-down design, which can effectively prevent the head from tilting when the 150 ton heavy haul lowboy trailer is loaded, making climbing easier.
Heavy Haul Trailers for Sale | 150 Ton Heavy Haul Lowboy Trailers for Sale Near Me
Heavy Haul Trailers for Sale | 150 Ton Heavy Haul Lowboy Trailers for Sale Near Me
Heavy Haul Trailers for Sale | 150 Ton Heavy Haul Lowboy Trailers for Sale Near Me
Heavy Haul Trailers for Sale | 150 Ton Heavy Haul Lowboy Trailers for Sale Near Me
Heavy Haul Trailers for Sale | 150 Ton Heavy Haul Lowboy Trailers for Sale Near Me
Heavy Haul Trailers for Sale | 150 Ton Heavy Haul Lowboy Trailers for Sale Near Me
Heavy Haul Trailers for Sale | 150 Ton Heavy Haul Lowboy Trailers for Sale Near Me
Heavy Haul Trailers for Sale | 150 Ton Heavy Haul Lowboy Trailers for Sale Near Me
Overall dimension: 14500mm*3000mm**1700mm
Loading capacity(T): 150T
Axle: 13T, FUWA / BPW / TITAN Brand
Rim: 900*22.5

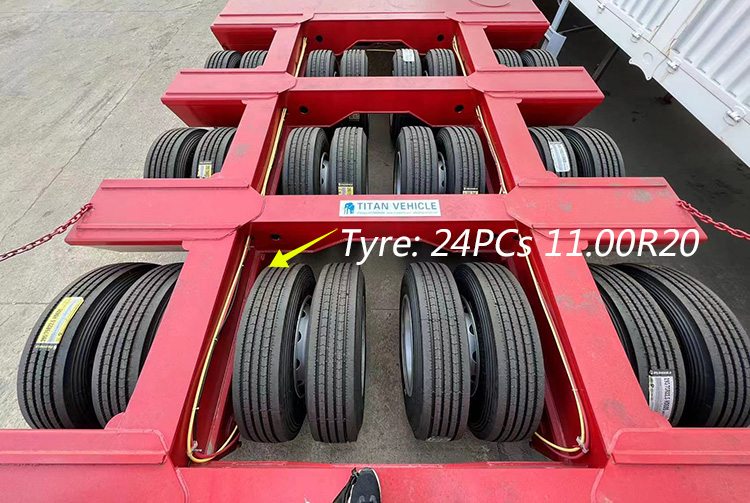

Tire: 11.00R20
Suspension: Mechanical suspension

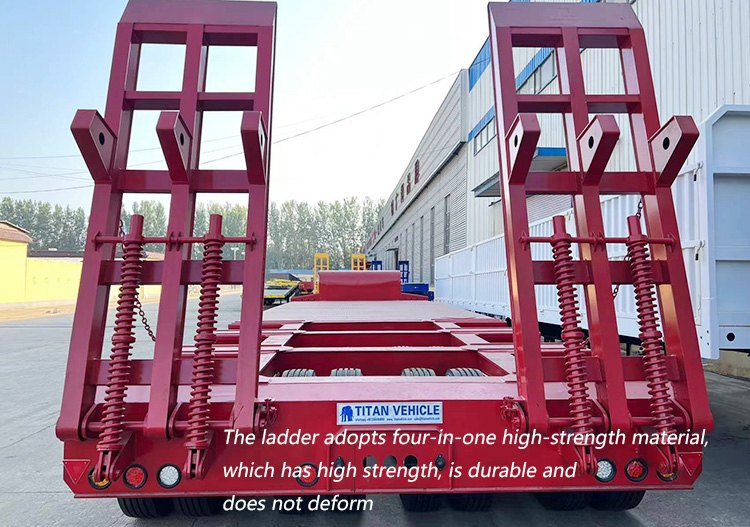

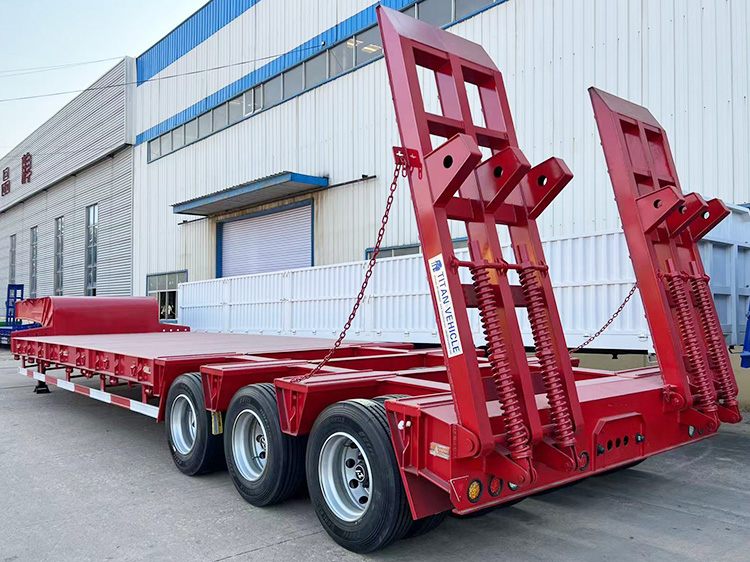

1. The ladder of 150 ton heavy haul lowboy trailer adopts four-in-one high-strength board, which has high strength, is durable and does not deform. The high-elastic double-spring climbing ladder is adopted, and ordinary people can easily lift it with one hand, which is more convenient to operate.

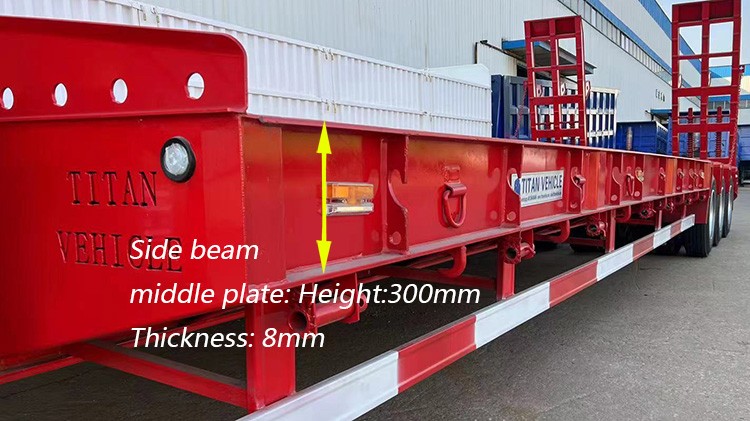

2.TITAN uses T700 high strength steel to produce the side beam of 150 ton heavy haul lowboy trailer and adopts H-type design, whose bearing capacity is 2 times that of other steels, it will not be deformed after ten years of use, and the anti-bump ability is increased by 3 times. The height of them middle plate is 300 mm and the thickness is 8 mm.

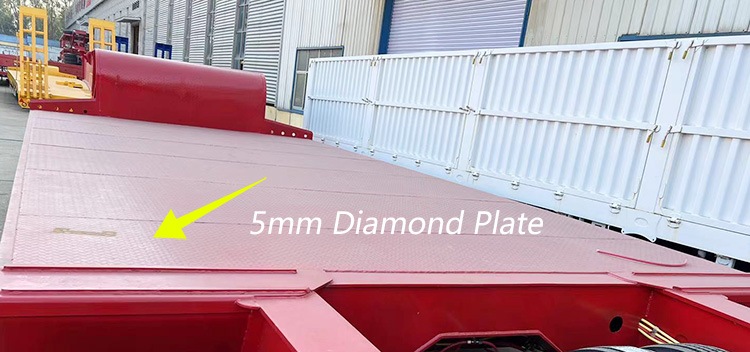

3.TITAN also adopts diamond anti-skid platform and its thickness is 5 mm, even you carry heavy machines, the platform will never deform.
4. At the gooseneck part of the beam, TITAN adopts double plate to reinforcement, which makes the main beam more strength and will never deform.
Video of 150 Ton Heavy Haul Lowboy Trailer
