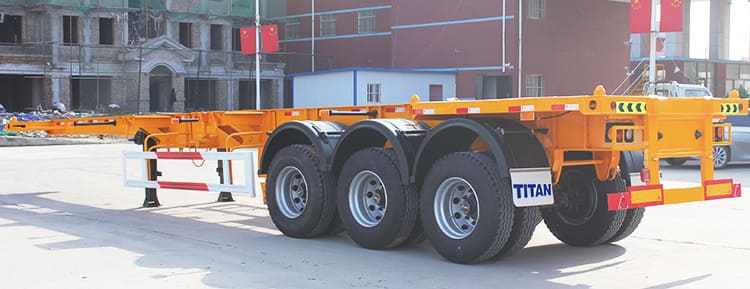

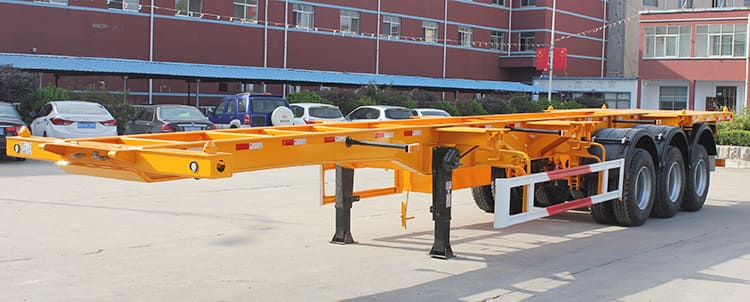

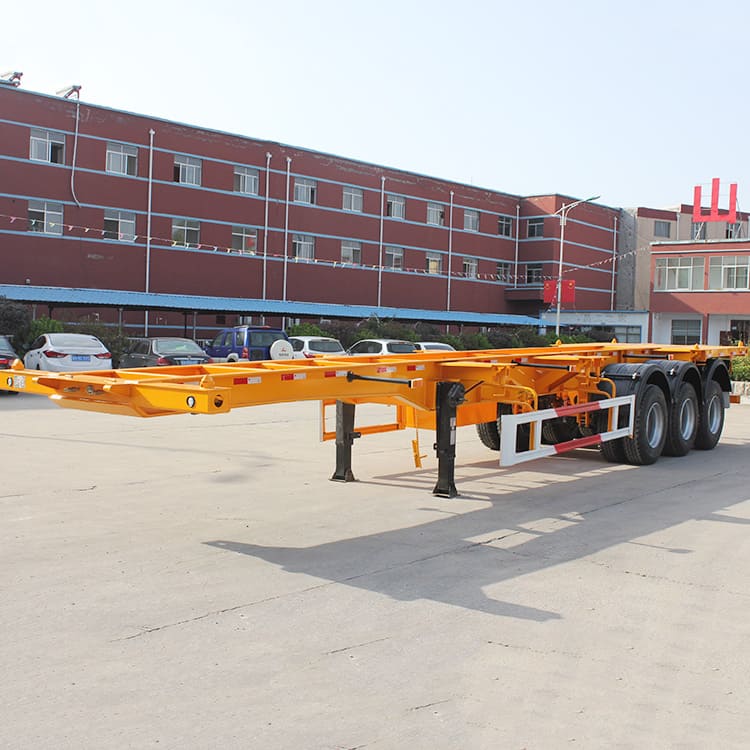

TITAN provide buyers the 40ft skeleton trailer for sale, with 3 axles, and has better bearing capacity, because of the high strength steel. the price of the 40ft container skeleton trailer for sale is pretty good.
TITAN container skeleton trailer for sale main beam is made of the high strength steel material Q345, and the main beam is cut off as a whole, the welding seam is aslo very smooth, which made the container skeleton trailer for sale has a longer service life.
TITAN could offer the buyers container skeleton trailer for sale with differernt parameters, such as 20ft, 40ft, 48ft, 53ft, and with different number of axles, 2 axle, 3 axle, 4 axle, 5axle, which made the capacity of the container skeleton trailer for sale differrent.
Container Skeleton Trailer for Sale | 40Ft Skeleton Semi Trailer
Container Skeleton Trailer for Sale | 40Ft Skeleton Semi Trailer
Container Skeleton Trailer for Sale | 40Ft Skeleton Semi Trailer
Dimension(mm): 12500x2500x1530mm
Loading capacity(ton): ≤60T
Axles: Tri axle container chassis price
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Air suspension and Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container
Container Skeleton Trailer for Sale | 40Ft Skeleton Semi Trailer
Through the video, you can know different types of skeleton trailers, as well as the process, testing, packaging and customer feedback, etc.
