TITAN 40 feet skeletal container transport trailer can be used to transport containers in ships, ports, routes, highways, transfer stations, bridges, tunnels and other logistics systems.
TITAN 40 feet skeletal container transport trailer can be used for a long time and has the characteristics of high strength. The skeletal container trailer is using Q345 low carbon steel to welding the main frame of the trailer, which has more strengh and durable.
TITAN 40 feet container transport trailer is widely used in modern logistics and transportation.
40 Feet Skeletal Container Transport Trailer for Sale Price
40 Feet Skeletal Container Transport Trailer for Sale Price
40 Feet Skeletal Container Transport Trailer for Sale Price
Dimension(mm): 12400x2500x1530mm
Loading capacity(ton): ≤60T
Axles: Tri axle container chassis price
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Air suspension and Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container

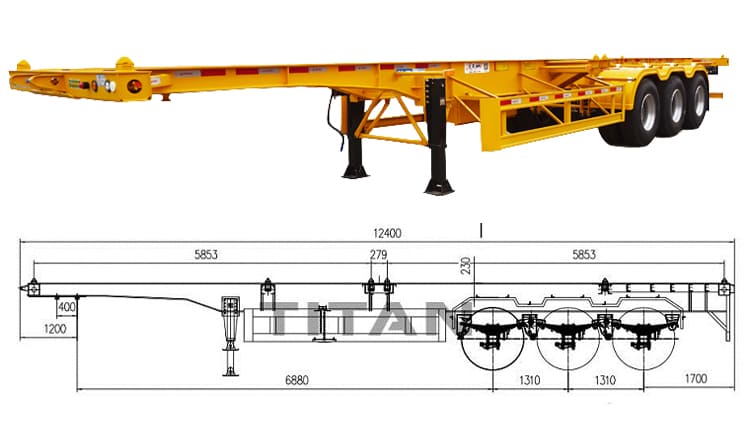

Drawing of the 40 Feet Skeletal Container Transport Trailer
Through the video, you can know different types of skeleton trailers, as well as the process, testing, packaging and customer feedback, etc.
