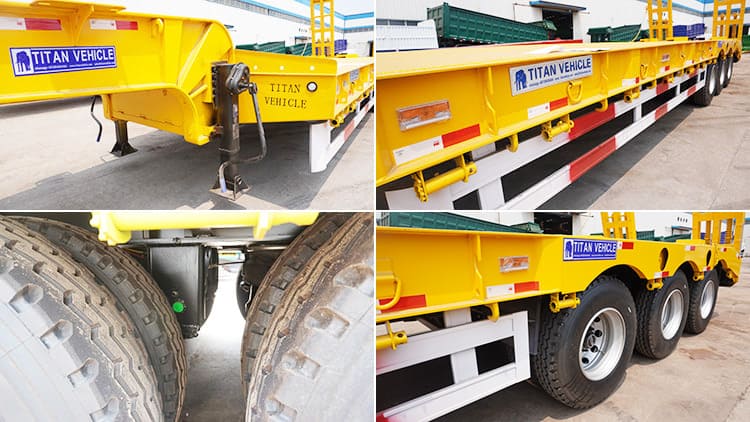

TITAN 3 axle semi low loader trailer is using the landing gear, which is the world famous recognized brand Jost. And it has better bearing capacity and longer service life.
The TITAN 3 axle semi low loader trailer's ladder is easy to operate, and one person can easily lift the ladder. At the same time, The ramp of the ladder is welded with H60 steel of high strength steel plate, which has strong bearing capacity and effectively ensures that the weight of excavator or other heavy equipment can pass through the spring ramp without deformation or damage. The service life can up to more than 5 years.

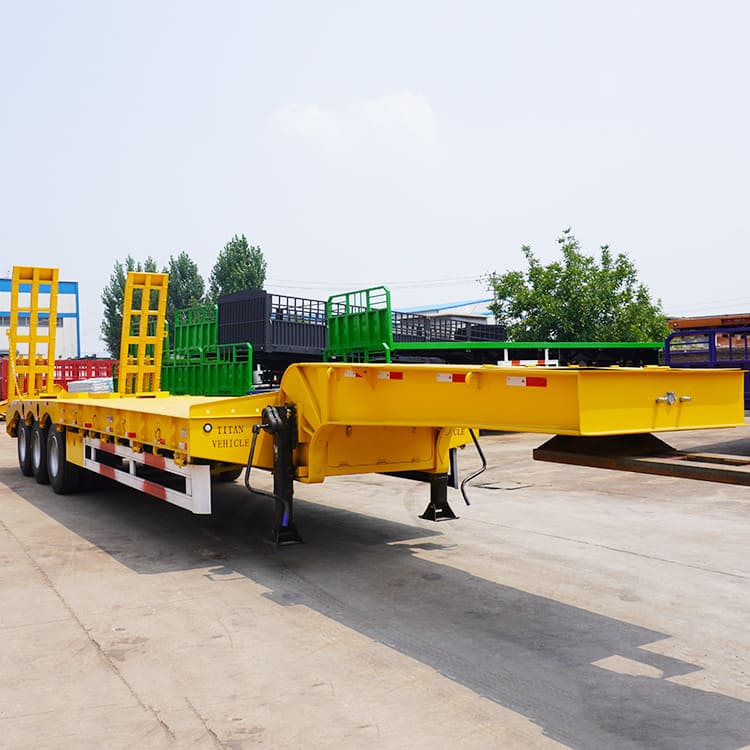

3 Axle Semi Low Loaders Trailer for Sale Near Me in Congo
3 Axle Semi Low Loaders Trailer for Sale Near Me in Congo
Overall dimension: 13000mm * 3000mm *3751mm
Loading capacity(T): 80T
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 12.00R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: Spring type
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)

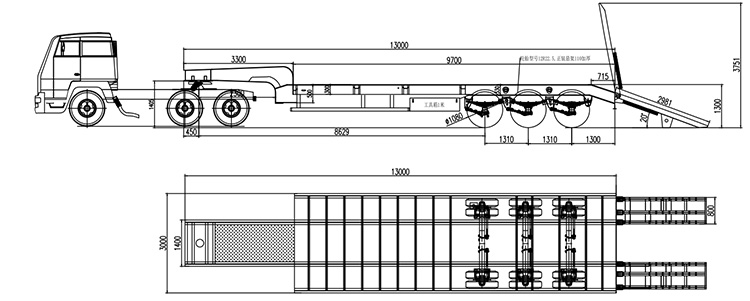

Drawing of 3 axles semi low loader trailer
The main beam of Titan drop deck trailer is made of HG60 high strength structural steel. HG60 steel has a yield strength of ≥620Mpa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times than the trailer made of Q345 steel. TITAN drop deck trailer main beam: height: 550mm; thickness: 14mm. The thickness of upper plate is 22mm, the thickness of lower plate is 22mm and the width of upper and lower plate is 220mm.
Through this videos, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
