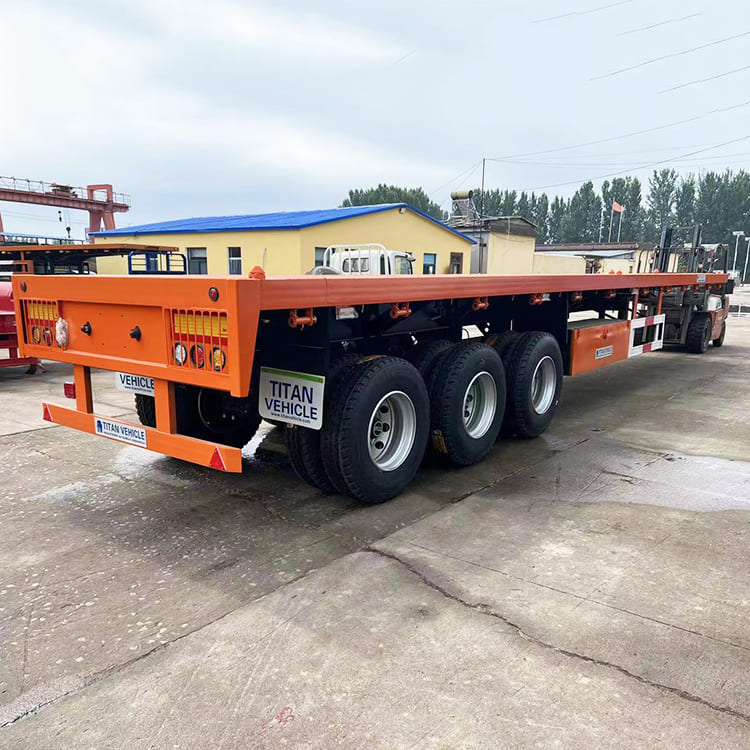

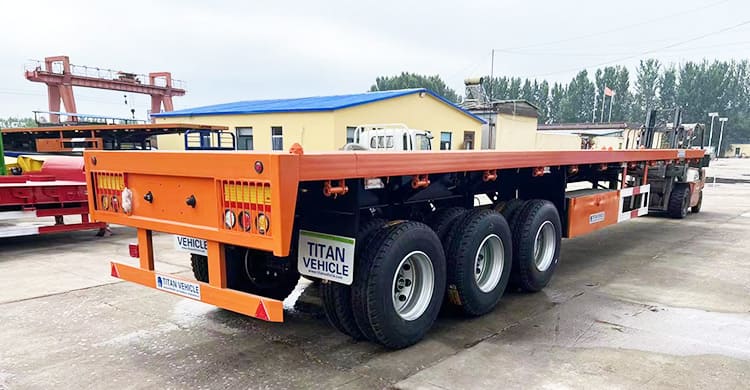

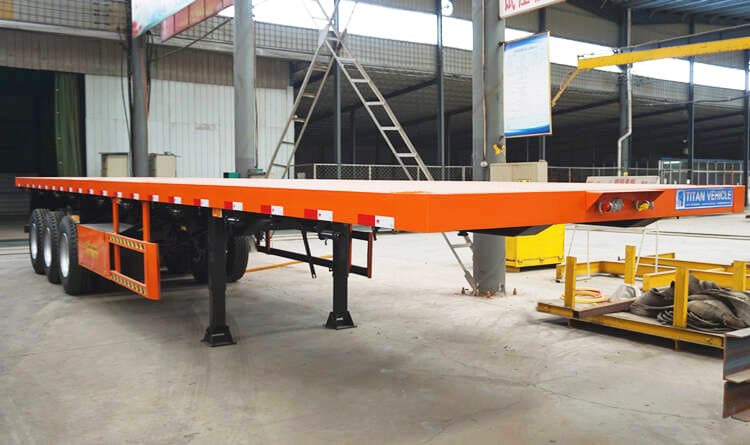

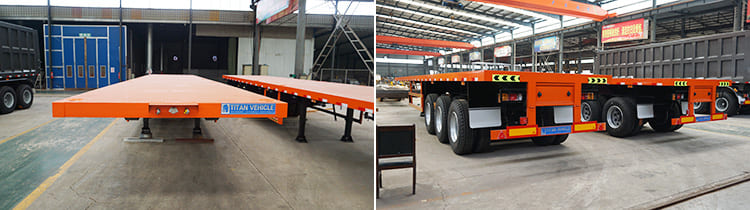

This tri axle flatbed trailer is mainly used for carrying containers with different dimensions (20/40/45/50/53ft).
The TITAN tri axle flatbed trailer uses high-strength carbon steel to make the bottom frame, which ensures that the flatbed trailer has better bearing capacity and is durable. This 3 axle flatbed traielr can be used to transport two 20-foot containers or one 40-foot container.
At the same time, titan uses polyurethane paint to treat the appearance of the tri axle flatbed trailer, and this paint will not fall off after 5 years of use.
How Much Are Flatbed Trailers? | Tri Axle Flatbed Trailer for Sale Near Me
How Much Are Flatbed Trailers? | Tri Axle Flatbed Trailer for Sale Near Me
How Much Are Flatbed Trailers? | Tri Axle Flatbed Trailer for Sale Near Me
How Much Are Flatbed Trailers? | Tri Axle Flatbed Trailer for Sale Near Me
Dimension(mm): 12500x2500x1550mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(China brand or BPW brand)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

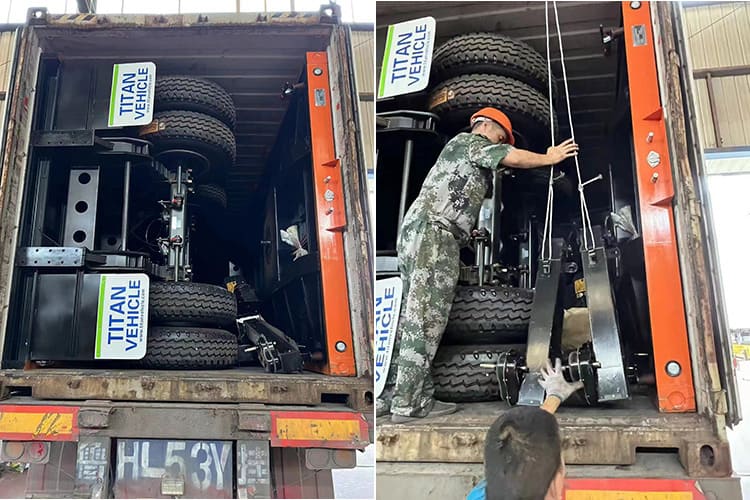

TITAN uses a professional waterproof rain cloth to protect the flatbed trailer, and at the same time sprays wax on the whole trailer to ensure that the trailer is as good as new when it is delivered to the customer.
How Much Are Flatbed Trailers? | Tri Axle Flatbed Trailer for Sale Near Me
Through this videos, you can learn about different types of flatbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
