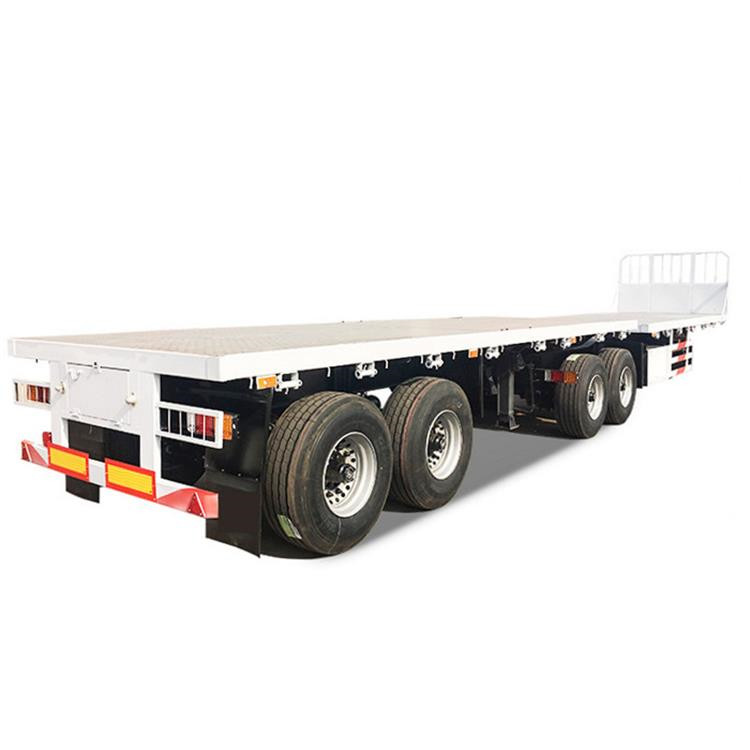

Flat deck superlink trailer consists of one 20ft flatbed semi trailer and one 40ft flatbed semi trailer. Its total loading capacity could up to 70 tons.
Flat deck superlink consists of one 20ft flatbed semi trailer and one 40ft flatbed semi trailer. Its total loading capacity could up to 70 tons.
For the flat deck superlink is populaized because of its flexibility. Each of the trailers can operate independently and increase the utilization coefficient of the tractor truck.
Flat Deck Superlink Trailer for Sale in Kenya - TITAN Vehicle
Flat Deck Superlink Trailer for Sale in Kenya - TITAN Vehicle
Model: Flat deck superlink
The front trailer size: 9800*2500*1500mm
The rear trailer size: 12500 mm*2500*1500mm
Loading capacity(ton): ≤60T
Axles: 4 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand
Tire: 16 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Through this videos, you can learn about different types of flatbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
