The types of full drawbar trailers are: Flatbed full trailer, cargo drawbar trailer, interlink full trailer, draw bar fuel tanker trailer and dump drawbar trailer.

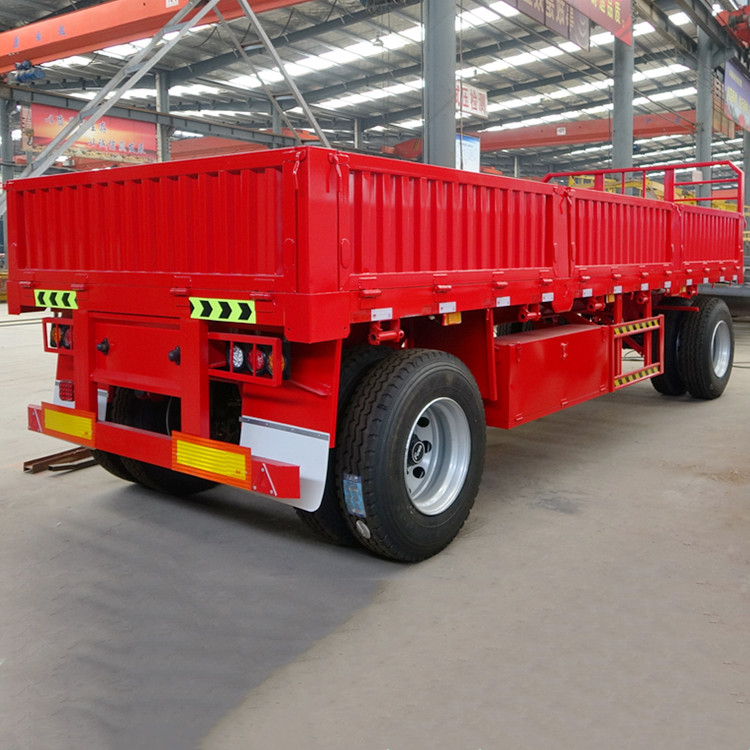

TITAN provides high quality drawbar side wall semi trailer is a specialized for carrying bulk cargo. all the key component and accessories of flat bed trailer with fence are purchased from qualified suppliers, so our flat bed trailer with fence are able to withstand a long time of use, exhibiting great strength.
Dimension: 7900mm*2700*1600mm
Loading capacity: 10~30 ton
Side wall: 600mm, 800mm, 1000mm
Axles: 2X14 ton TITAN
Tire: 12R22.5, 8 units
King pin: 90# JOST
Landing gear: JOST C200
Brake system: WABCO Valve and relays/ABS
Suspension: Mechanical Spring Suspension
Container lock: 4units
1. The frame of the Drawbar side wall semi trailer adopts the space frame structure of welding the longitudinal beam and the integral through type cross beam. It is outstanding in strength, rigidity, toughness and bearing capacity. Meanwhile, the frame won’t come out with permanent deformation.
2. The height of side wall can adopts 800mm and the height of fence is 300mm, the side wall without removing when carry the 40ft 20ft containers.
3. TITAN Drawbar side wall semi trailer adopts excellent brake effects.the axles are equipped with WABCO emergency brake valve also dual-brake chambers also widen brake pads.
4. TITAN Drawbar side wall semi trailer adopts premium steel material, advanced technology and strict production to our semi-trailer. The trailer chassis automatic submerged arc welding to ensure the welding seal solid.
