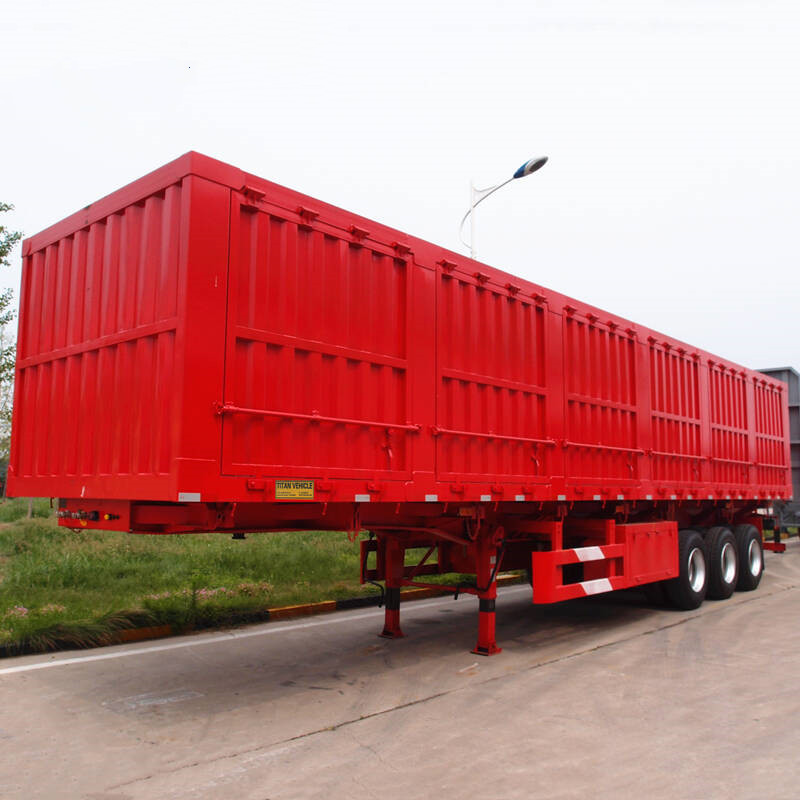

Box semi trailers are mainly used in the bulk cargo transportation. The rated capacity varies widely from 30Tons to 100Tons, and the dimension different from 7000mm to 18000mm.
Box semi trailers are mainly used in the bulk cargo transportation.
The rated capacity varies widely from 30Tons to 100Tons, and the dimension different from 7000mm to 18000mm, we can manufacture it according to your needs.
The side wall height and side or back door numbers and opening ways have several options for your better usage.
Dimension(mm): 13,000x2,500x4,000mm(The height can be adjusted)
Tare Weight: 7,500kg(+/- 5%)
Payload: 40T
Axle: 3 axles
Tire: 12 units
Suspension: mechanical spring suspension
Landing Gear: JOST
Kingpin: 3.5”JOST, exchangeable
Brake System: WABCO brake valve
Electrical System: 24V, LED lamp
