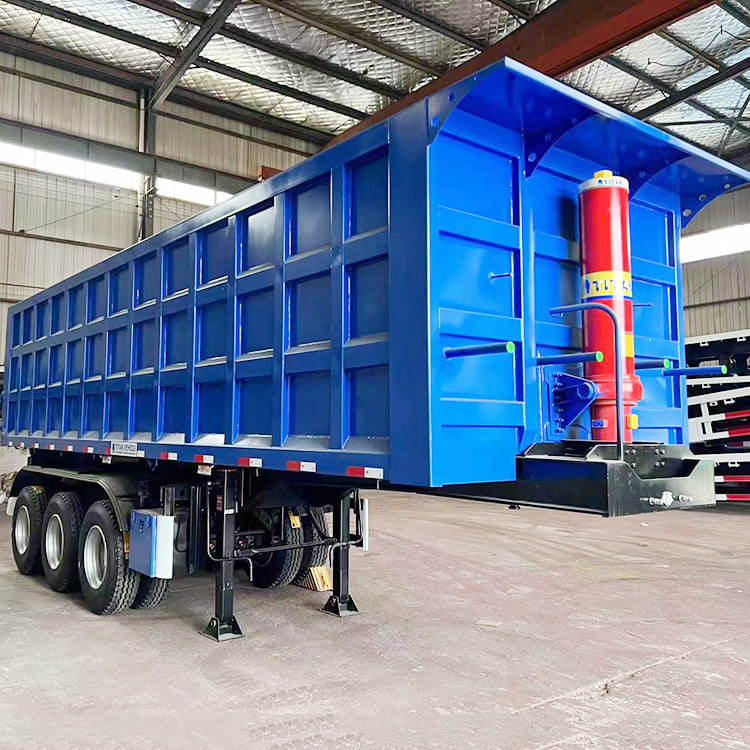

33cbm tractor tipper trailer is a cargo vehicle of a open type, which is a cargo trailer with a tipping platform for unloading (equipped with a hydraulic lift), which is designed to solve cargo transport tasks on public highways.
TITAN 33cbm tractor tipper trailer is used for transportation of bulk cargo, building materials, coal. Depending on the features and characteristics of the cargo to be transported, the body of tractor tipper trailer is made of high strength steel. Tractor tipping trailer have rear loading / unloading, however, there are designs that provide for multilateral loading / unloading.
This Tractor Tipper Trailer can be 2 axle, 3 axle, 4 axle, 5axles, the volume of the trailer is also optional.
Tractor Tipper Trailer for Sale | Tractor Tipping Trailer for Sale | Tractor Trailer Tipper
Tractor Tipper Trailer for Sale | Tractor Tipping Trailer for Sale | Tractor Trailer Tipper
Tractor Tipper Trailer for Sale | Tractor Tipping Trailer for Sale | Tractor Trailer Tipper
Tractor Tipper Trailer for Sale | Tractor Tipping Trailer for Sale | Tractor Trailer Tipper
Dimension: 8000mm * 2500mm *1600mm ( inside dimension )
Main beam: Height: 480mm-500mm, Upper plate: 16mm-25mm, Middle plate: 12mm-20mm, Lower plate: 18mm-25mm
Total volume(m³): 33 CBM
Side wall thickness: 4 - 6mm
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
1. Double-plate main beam. TITAN is using the double-plate main beam for tipper tractor trailer; the main beam is designed with double plates, which have stronger carrying capacity; it is not easy to damage;
2. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.
3. Steel material. TITAN is using the HG60 high-strength steel, which can effectively prevent collision and avoid deformation of the cargo box of the tipper tractor trailer.
Through these videos, you can learn about different types of tipper semi trailer, as well as the process, testing, packaging and customer feedback, etc.
