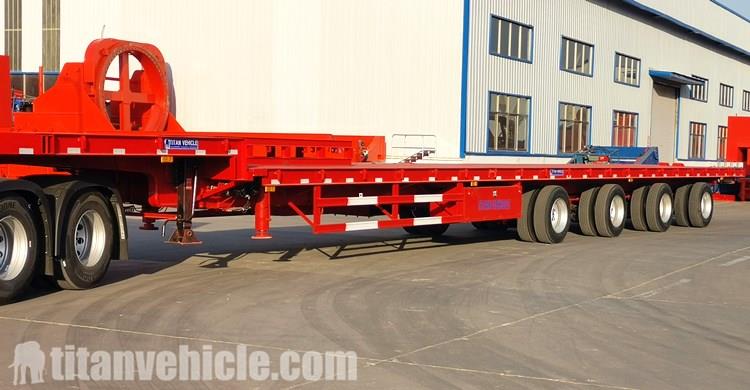

Extendable Windmill Blade Transport Trailer is testing and will be sent to Vietnam Danan.
Extendable Windmill Blade Transport Trailer for Sale In Vietnam Danan
Mr. Phan Thien Hoang learned from local friends that our Extendable Windmill Blade Transport Trailer has very good use and the quality can be guaranteed. After getting in touch with our sales manager Alice, after confirming the requirements, we recommend the most suitable Extendable Windmill Blade Transport Trailer to the customer.
Because the customer also saw TITAN’s Extendable Windmill Blade Transport Trailer locally, they trusted TITAN’s semi-trailer very much. The customer placed an order within a week.
China Extendable Trailer for Sale
Extendable Windmill Blade Transport Trailer configuration is a trailer mechanism that is designed and adapted to be towed through the use of a tractor truck traveling along a roadway. The extension on the trailer is done efficiently take loads that may be of different lengths as the job will demand.
The mechanism of this type of extendable trailer could include both a front and rear chassis disposed of in a telescoping connection where each of the chassis can be supported through the separate wheel and axle assemblies. These could be inclined in a side-by-side connection in the contracted condition of the mechanism.
The disposition could be in spaced relation in the extended format of the mechanism. Both the rear and front chassis cooperate in such a way that the chassis are inclined in a largely rigid connection

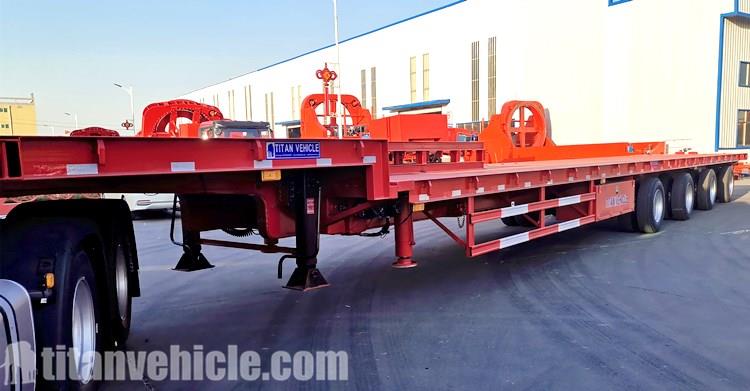

Factory Show of Extendable Trailer Manufacturer
when the mechanism of the trailer is contracted and permissible articulation of the chassis frameworks about an overly horizontal axis following the extension of the trailer mechanism. The devices forming up the locking mechanism are provided for purpose of securing the rear and front chassis frameworks in the assembly both in the extended and contracted status of the transporter mechanism.
The main components of the trailer are a power pack unit, gooseneck, wheel, supporting device, frame electrical system, hydraulic suspension, braking system, ladder and hydraulic system among others.
1.Learn Extendable Trailer Advantage & Features
4 Axle Extendable Trailer is commonly used to transport very long cargo, like tanks and windmill blades and bridge sections among other similar-like cargo.

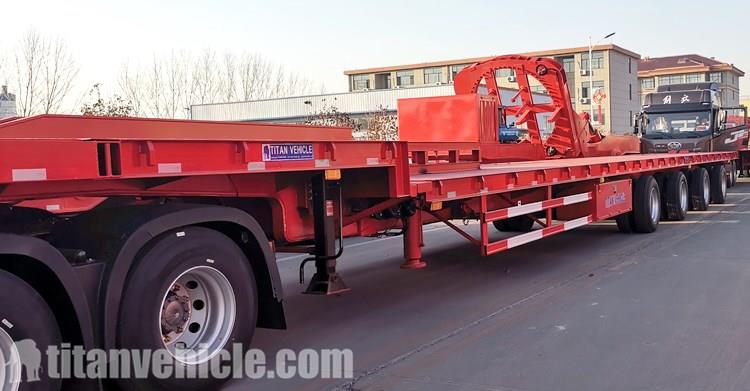

Details of 4 Axle Extendable Windmill Blade Transport Trailer
To take these loads, the trailer is extended lengthwise. When it is not carrying any load, it needs to be adjusted back to a short length. Its application and use should, however, be based on the stipulated local laws and driving safety.
2.Extendable Windmill Blade Transport Trailer Basic Configuration
A conventional 58m extendable trailer configuration has a fixed frame and an additional frame that can be connected to the fixed one. The second frame makes a slide-able contact with the fixed frame to provide the desired longitudinal extension.
This means that the free frame can move in a relative way to the fixed frame for purposes of either lengthening or shortening the apparatus of the trailer. The movable frame is usually situated at the rear section of the tractor-towed trailer. This freely moving trailer is made up of a set of wheels and axle firmly secured to it. Securing of the load is firmly made to the fixed frame.

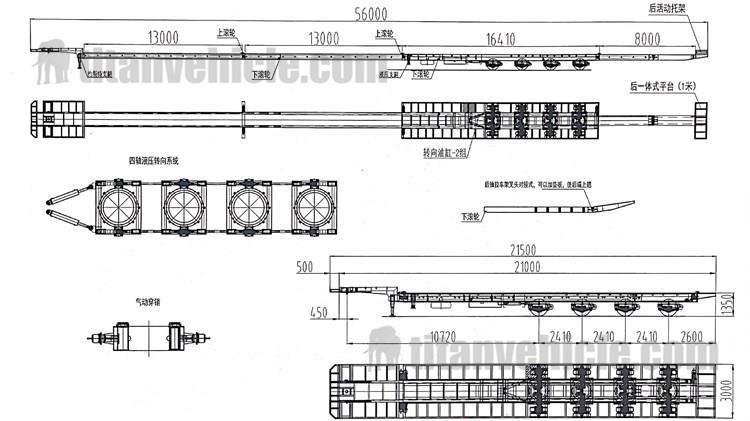

Drawing of Extendable Trailer for Sale Price
3.Key Components of the Extendable Trailer
The extendable trailer is a robust transportation platform with a gooseneck, a frame, axle assembly, various hydraulic systems,the braking system, steering system, power pack unit, electrical equipment and so on.
