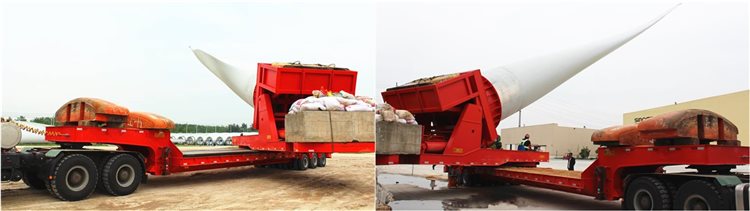

This vane transporter does not adopt the pull-out structure of an ordinary vane transporter. Instead, it adopts another way of thinking. It directly “holds” the vane through the hydraulic workstation and lifts it in the air to achieve a shorter vehicle. Long to transport super long wind blades.

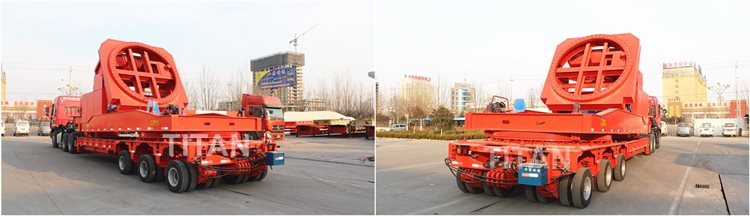

In the process of transportation, the hydraulic control can make the wind blade rotate 360 degrees, the fan blade can rotate through the lower slewing support and the annular slideway to a maximum angle of 360 degrees, and the maximum opening angle of the fan blade is 60 degrees through the expansion and contraction of the cylinder. Counted from the front of the wind blade tip landing).

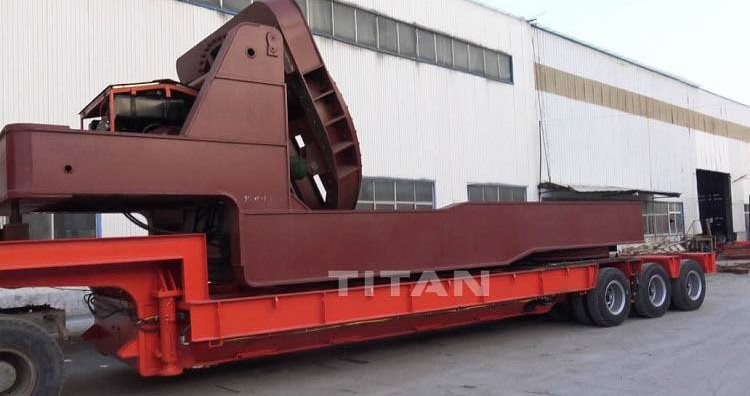

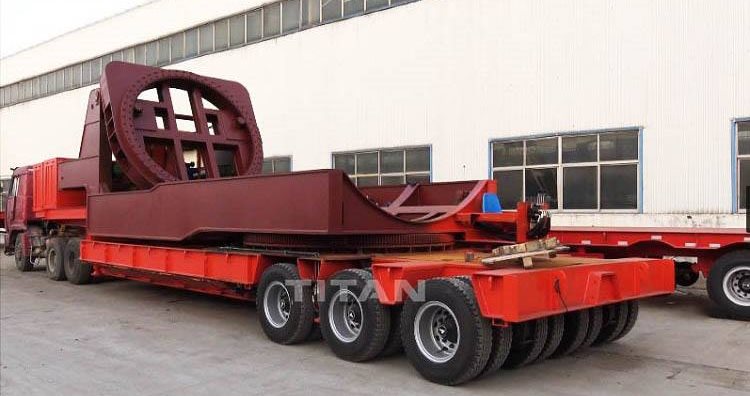

3 line 6 axle Wind Blade Trailer
These designs are compared with ordinary vane transport vehicles, especially for mountain vane transport. Although the lifting vane transporter solves the problem of mountain transportation to a certain extent, it is still very difficult especially when facing extreme curves.
The vane transporter introduced today uses hydraulic devices to control the vanes. During transportation, the vanes can raise, swing, and rotate themselves, avoiding various obstacles such as trees, mountains, and wires on the way, effectively solving the wind vane in mountainous areas. Transport problems
The current wind power is not easy to transport, and the current models are upgraded. The big guys can discuss their opinions about this car.
Here are some brief introductions:
The blade hillside transportation tooling has the characteristics of stable and reliable structure, low overall center of gravity, and convenient operation. The load-bearing trailer adopts a 16-meter low bed semi-trailer with an overall height of 4400mm after installation, which reduces the height of the overall center of gravity and improves the stability of the vehicle, providing a safety guarantee for the transport blades to adapt to different road conditions.
1) Adopting a 6-cylinder diesel engine and a 40ml plunger pump, it provides sufficient power for the blade tooling to realize rotation, lift and pitch change.
2) The overall rotation of the mountain downshifting tooling adopts 4 hydraulic motors for 360-degree rotation, and the blade pitch adopts 2 hydraulic motors, which not only ensure balance and synchronization, but also strengthen power.
3) The cylinder is on the opposite side of the blade and is installed below. The lifting arm is enlarged, which reduces the actual demand pressure on the hydraulic system.
4) In order to satisfy customers with different sizes of transport blades, two detachable counterweight boxes are installed at the front, which can be deployed according to the situation.
5) The overall structure has relatively reduced requirements for counterweight, reducing the total weight at full load to ensure safety during transportation.
6) It is made of high-strength steel plate, which not only guarantees the overall safety but also controls the overall weight, and improves the economy and convenience in the no-load process.
Windmill blade transport trailers include ordinary extendable blade transport semi trailers, axial wind blade transport trailers, and lifting blade transport semi-trailers. Let’s introduce to you:
① Ordinary extendable trailers are a bit similar to low bed transport vehicles, but the girder adopts a buckle box design. The girder is pulled to adjust the length of the vtrailer to adapt to the transportation of vanes of different lengths. It is understood that the current domestic pumping The pull-type vane transport trailer can be up to 50 meters long.
②The big difference between the axial fan transport trailer and the ordinary extendable trailer is that the chassis adopts a hydraulic axis design, so that the vane truck has a lower cargo deck and more flexible steering.
③Lifting blade transport trailer refers to a blade trailer equipped with a hydraulic lifting device, which is mainly aimed at the transportation of blades in mountainous areas. In the case of flat roads, the blades are transported flat. In the case of extremely small turning radius in mountainous areas, raise the height of the items carried by the lifting device (usually 5-10 meters), shorten the length of the vehicle and bypass obstacles.

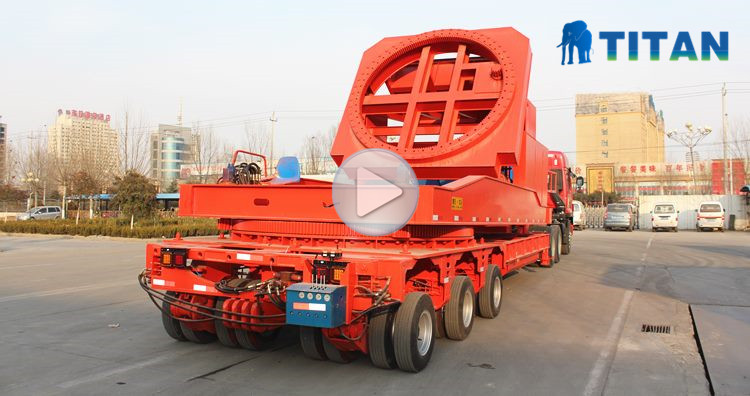

Through the video below, you can learn about different types of windmill blade trailers (like windmill blade trailer , wind turbine trailer , wind blade trailer , wind turbine blade transport trailer , Wind Turbine Tower Transport)
And the process, testing, packaging and customer feedback, etc.
Click “Product“, you can find your favorite semi trailer.
